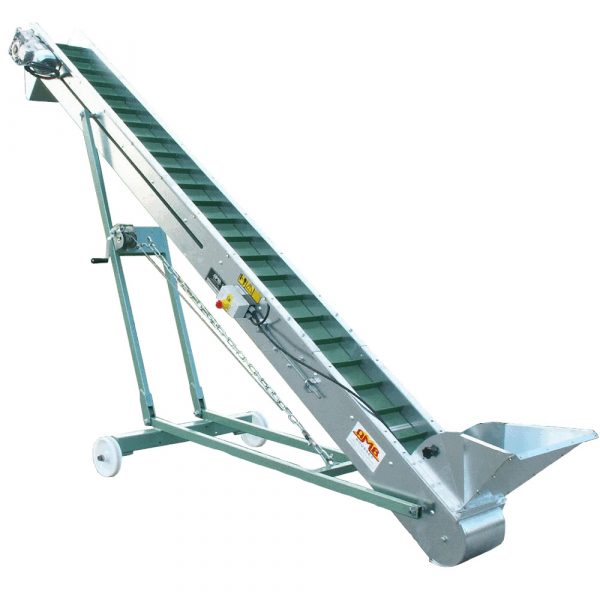

Economical elevator
This is the economical version of our elevator.
Rather used to convey dried and clean nuts, this device will help make the job easier for you.
Made for
Walnuts
Hazelnuts
Chestnuts
Almonds
Plums
Olives
Pecans
Macadamia
See the technical specifications
Threephase moto-reducer (0,37 kW), at fixed or adjustable speed,
controlled by a mechanical variator
controlled by a mechanical variator
Very robust, folded and screwed galvanised frame
Fitted on 4 self-aligning bearings
Fitted on 4 self-aligning bearings

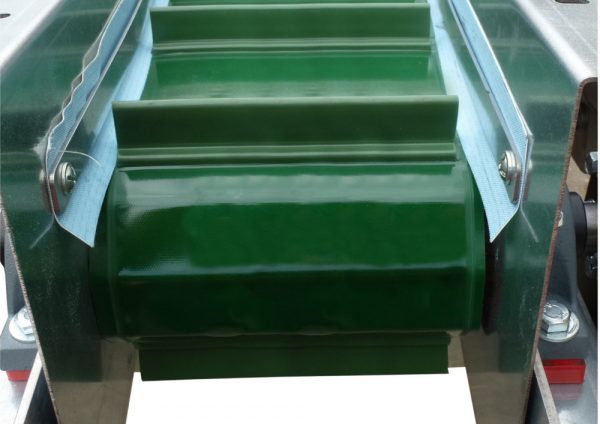

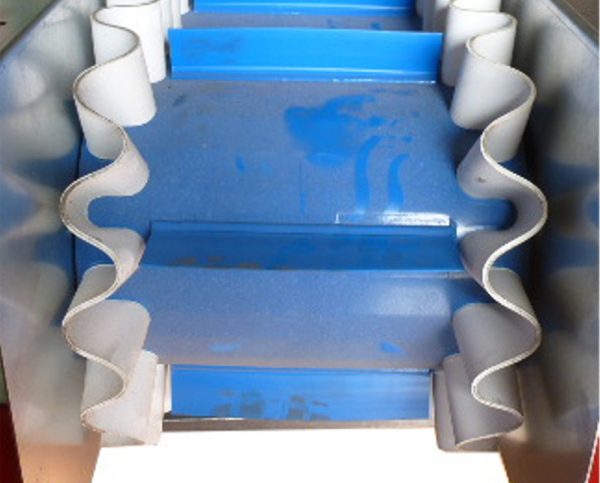

PVC transport band with buckets (15 cm pitch)
The tension of the carpet is adjustable
The tension of the carpet is adjustable
The machine and the PVC transport band with buckets are protected by a guard (In accordance with the labour legislation)
Welded belt placed under the band ensuring a good centering of the carpet
Fixed or wheeled
Welded belt placed under the band ensuring a good centering of the carpet
Fixed or wheeled
Length : from 2 m up to 5 m or more
Band width : 0,25 m

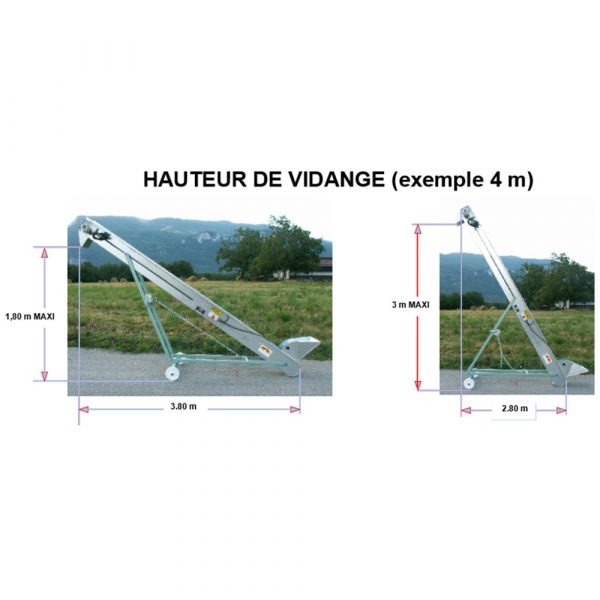

Height: adjustable
Weight : depending on the model
Flow : depending on the slope, from 3 to 5 tons/hour
Band width : 0,25 m
Height: adjustable
Weight : depending on the model
Flow : depending on the slope, from 3 to 5 tons/hour
FIXED trolley: 2 m - 2,5 m - 3 m
ADJUSTABLE trolley: 3,5 m - 4 m - 5 m
ADJUSTABLE trolley: 3,5 m - 4 m - 5 m
