CALIBRATOR ON SHELLING MACHINE C81

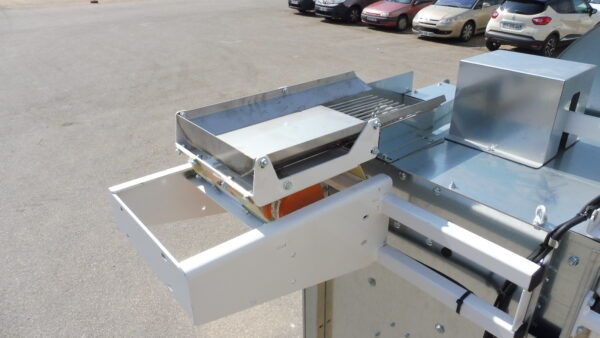

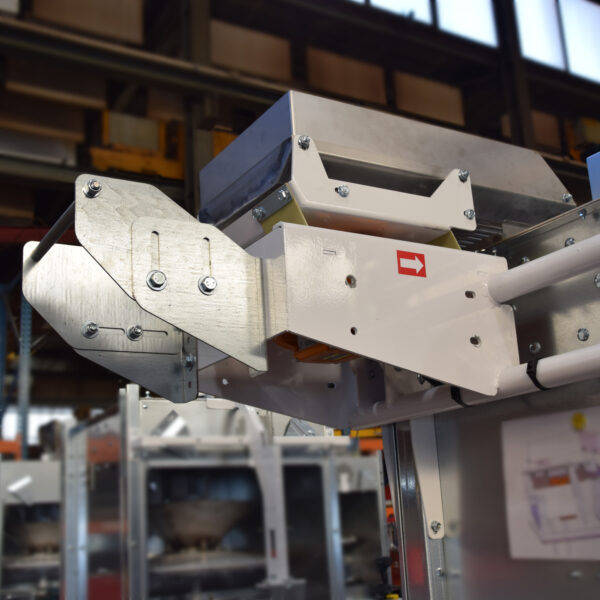

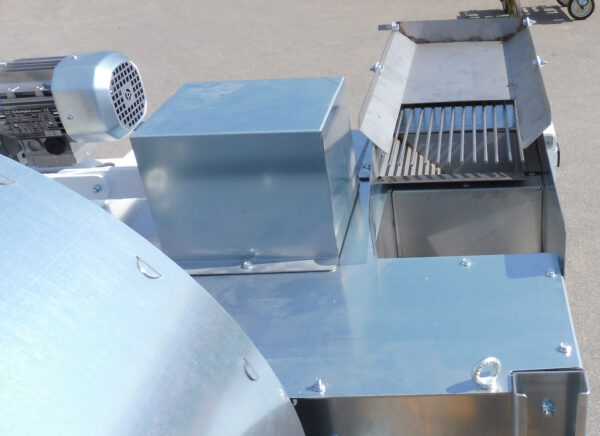

After cracking, the mix between kernels into the shell and kernels without shell can be separate with the calibrator kit with kernels deflection C81 mounted on the after cracker (shelling machine).
The kernels without shells go directly into the blower, without going into the shelling machine (ENO). The kernels into shells will be shelled into the ENO (shelling machine).

Advantages :
– The kernels without shell won’t go into the ENO and won’t be damaged.
– The calibrator C81 mounted on the ENO allows to unclog the ENO and thus to increase the feed rate if needed.
– 2 grid sizes depending on the fruit.

Made for
Walnuts
Ask for quotation
Download the product sheet

After cracking, the mix between kernels into the shell and kernels without shell can be separate with the calibrator kit with kernels deflection C81 mounted on the after cracker (shelling machine).
The kernels without shells go directly into the blower, without going into the shelling machine (ENO). The kernels into shells will be shelled into the ENO (shelling machine).

Advantages :
– The kernels without shell won’t go into the ENO and won’t be damaged.
– The calibrator C81 mounted on the ENO allows to unclog the ENO and thus to increase the feed rate if needed.
– 2 grid sizes depending on the fruit.

Technical features
Functioning
Continuous, which allows the separation of the shelled kernels from the kernels to be shelled
Output
250 Kg/h
Motor
120 W
Chassis
Bolted & welded suitable for ENO
Technical features
Vibrating motor with unbalance adjustable in intensity by weights Insulation of the vibrating element by fiberglass lamella Interchangeable grids to adapt to the products
Security
Conforms to CE standards
Dimensions
Length : 700 mm
Width : 400 mm
Height : 450 mm
Weight
43 Kg
